/ 行星减速机

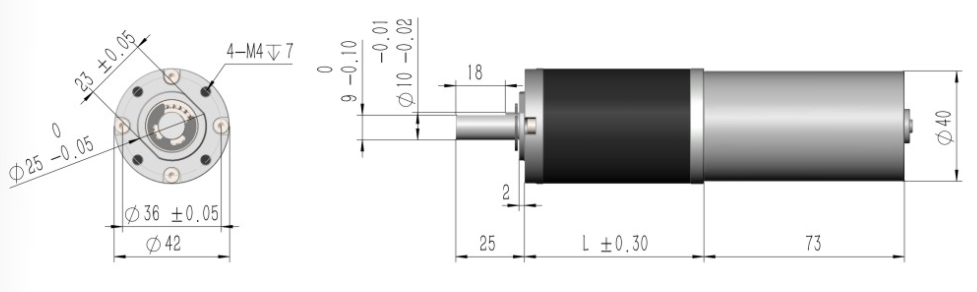

LPG42/RS775-1245外形尺寸
参数表
Reduction |
Stage |
Length (mm) |
No-load speed (r/min) |
Rated speed (r/min) |
Rated torque (kgf.cm) |
Max.allowable load (kgf.cm) |
3.67 |
1 |
28.1 |
1217 |
1022 |
1.6 |
9 |
5 |
1 |
28.1 |
889 |
748 |
2.2 |
9 |
13 |
2 |
37.4 |
330 |
269 |
5.0 |
15 |
18 |
2 |
37.4 |
238 |
199 |
7.1 |
20 |
25 |
2 |
37.4 |
178 |
148 |
10 |
30 |
49 |
3 |
46.7 |
87 |
76 |
17 |
60 |
67 |
3 |
46.7 |
66 |
54 |
23 |
75 |
92 |
3 |
46.7 |
48 |
41 |
30 |
90 |
125 |
3 |
46.7 |
35 |
30 |
30 |
90 |
181 |
4 |
56 |
24 |
20 |
40 |
120 |
246 |
4 |
56 |
18 |
15 |
40 |
120 |
336 |
4 |
56 |
13 |
11 |
40 |
120 |
458 |
4 |
56 |
11 |
8 |
40 |
120 |
625 |
4 |
56 |
7.5 |
6.5 |
40 |
120 |
Notice: The table is based on the 12V/4500rpm motor |
